Innovation Brief from Samco Machinery: Bridge Decking Roll Forming Line

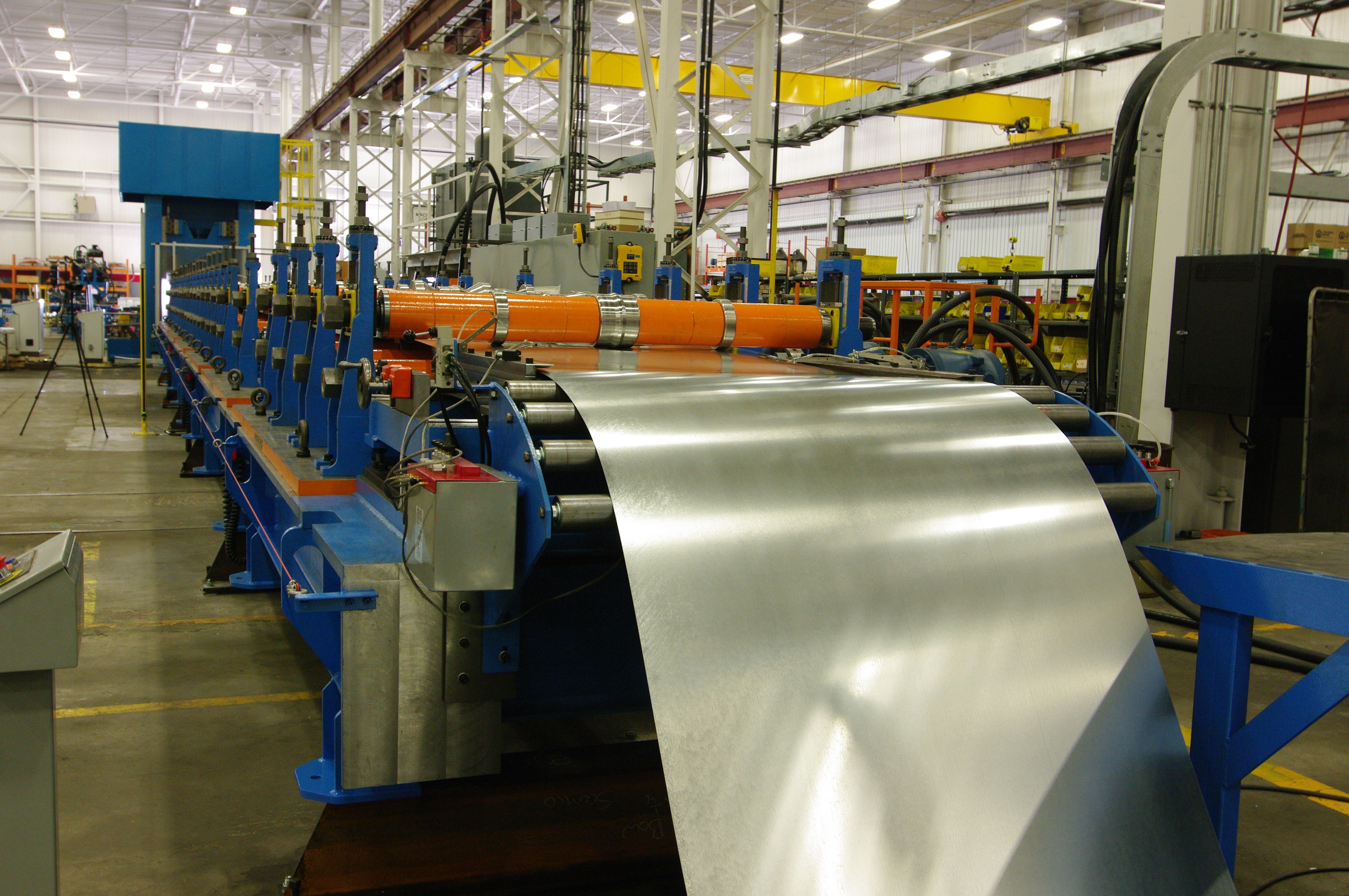

TORONTO, September 9, 2015 – Samco Machinery introduces a continuous and high-performance bridge deck roll forming line with a post-cut operation. All four profiles (2-inch, 2-1/2-inch, 3-inch and 4-inch) are roll formed, end formed in the press and cut-to-length, utilizing quick changeovers from one profile to the other using rafted tops (cassettes) with quick-coupling disconnects.
Key features:
- 20K single-ended uncoiler with coil car, hydraulically powered full time, driven with mandrel expansion.
- Hydraulically powered Up/Down threading table to assist in threading raw materials into the system.
- Length control system helps operator set length and quantity.

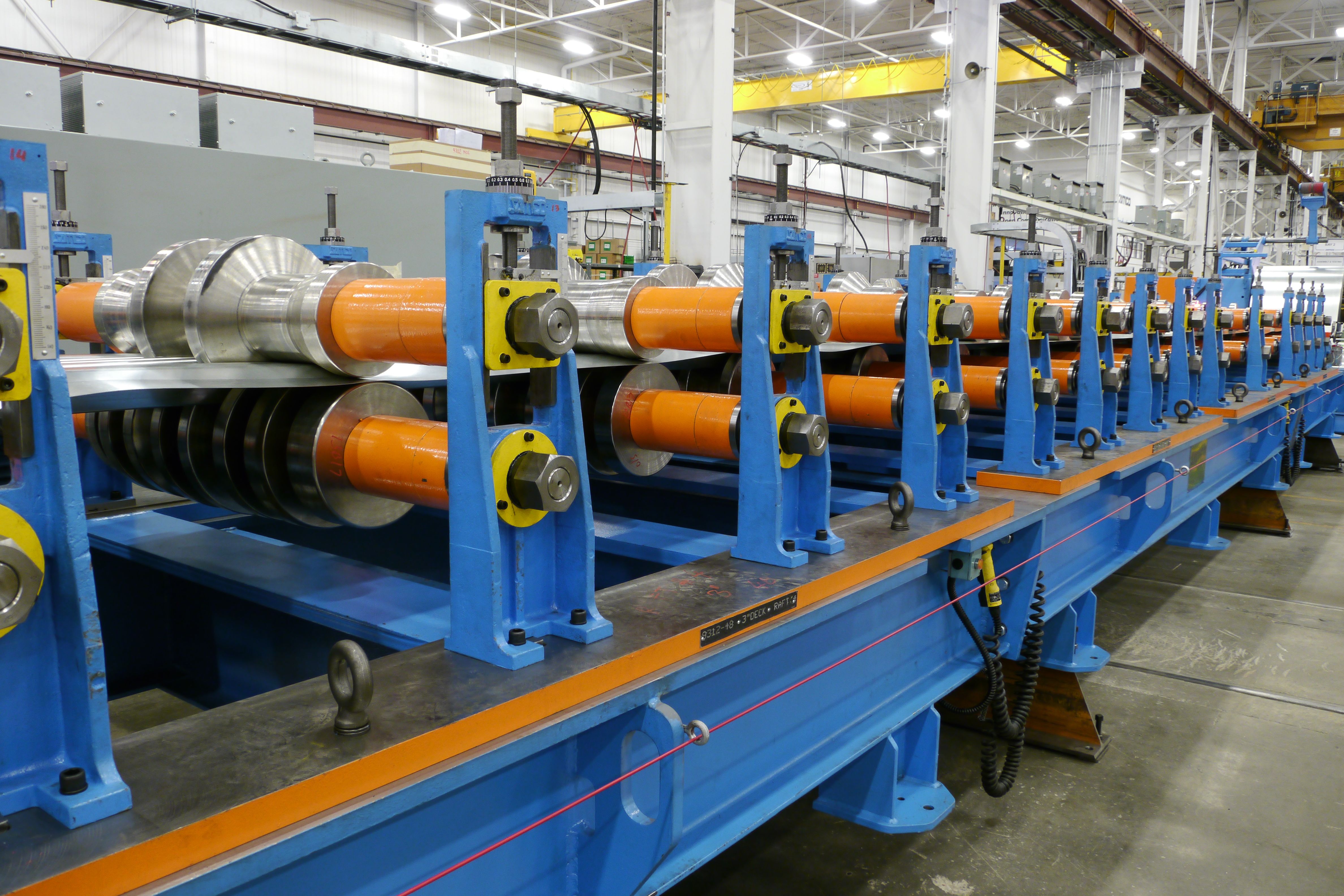

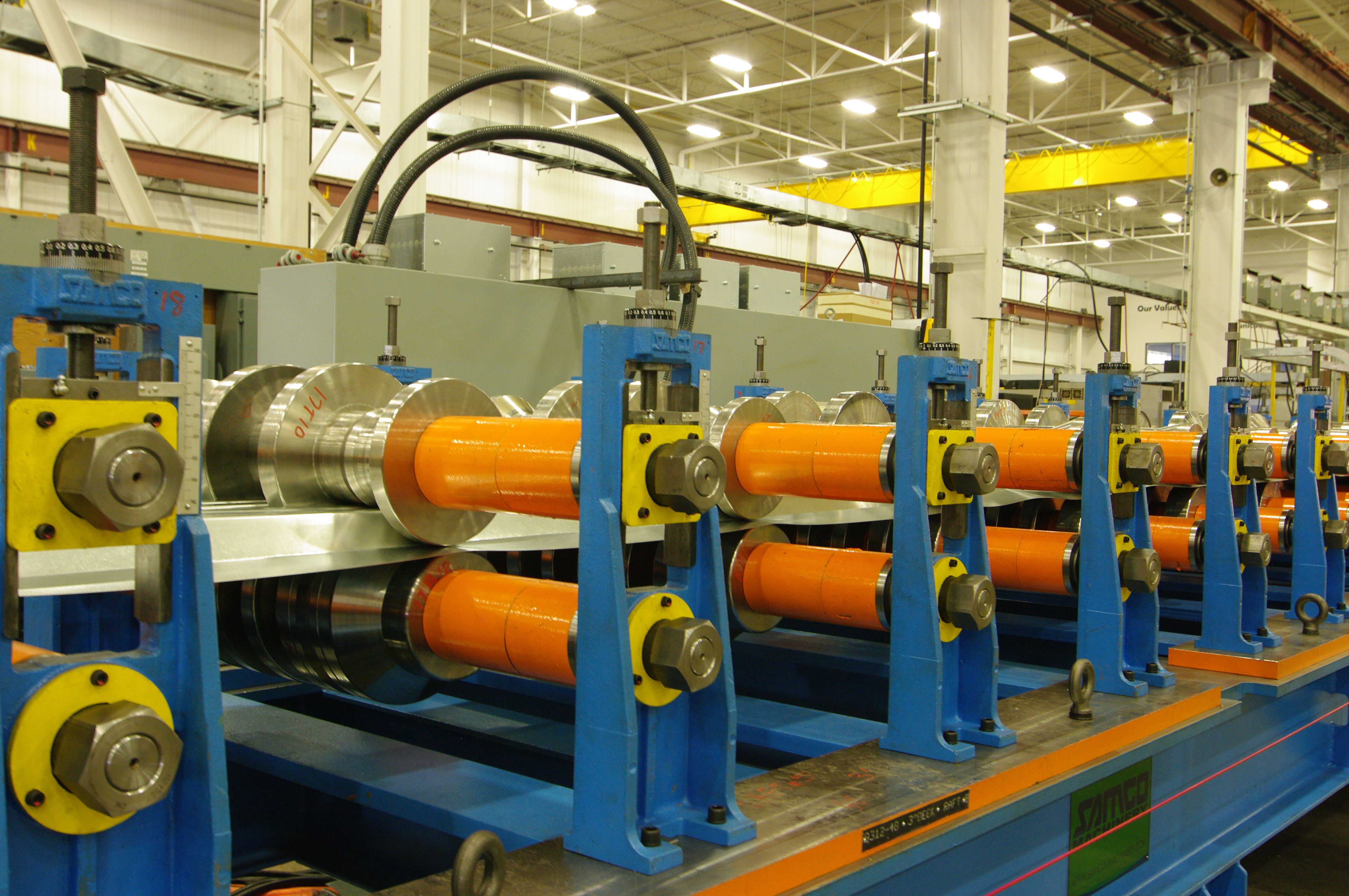

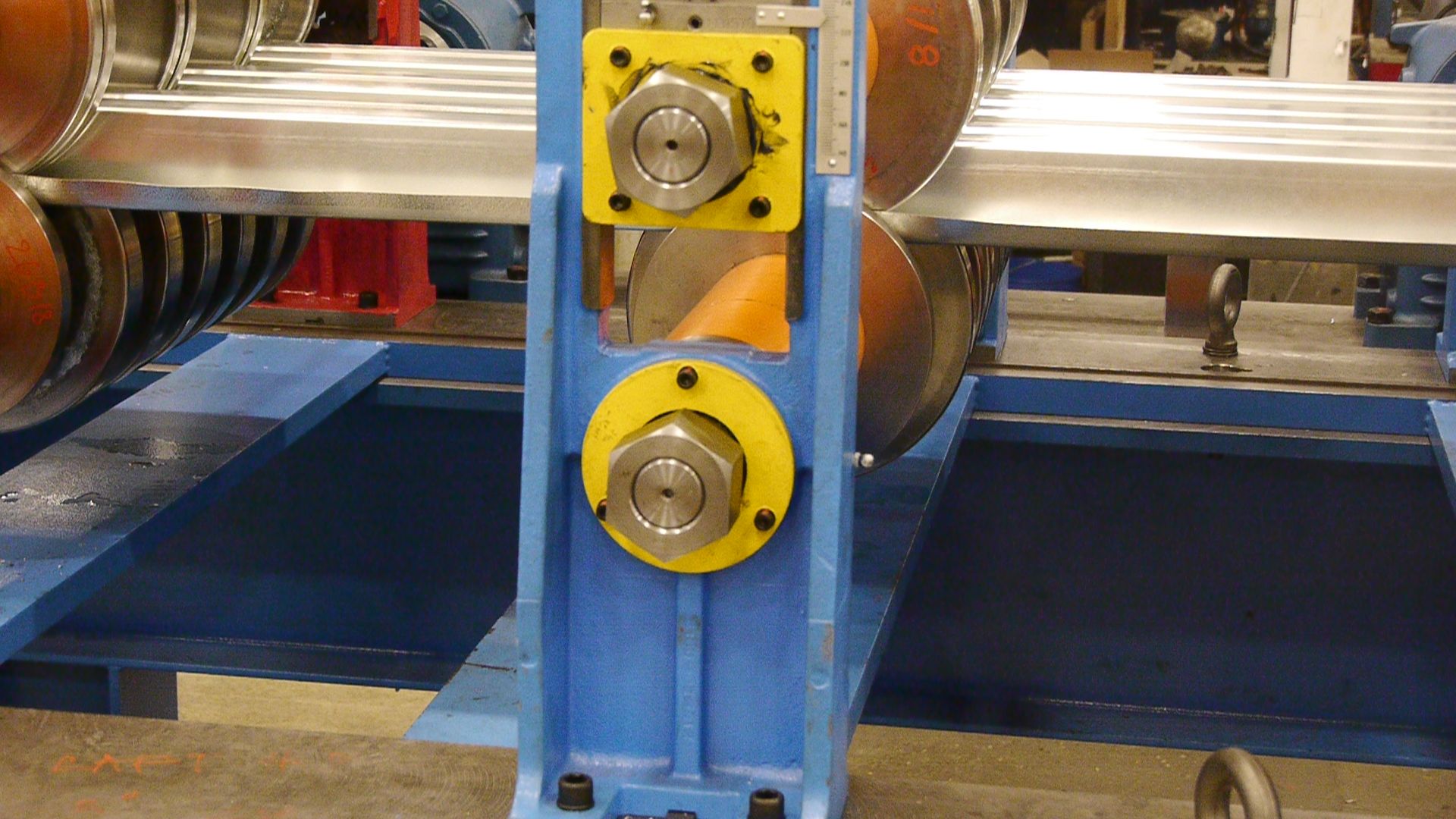

- 28-pass rafted roll former with gear box drive at every station.

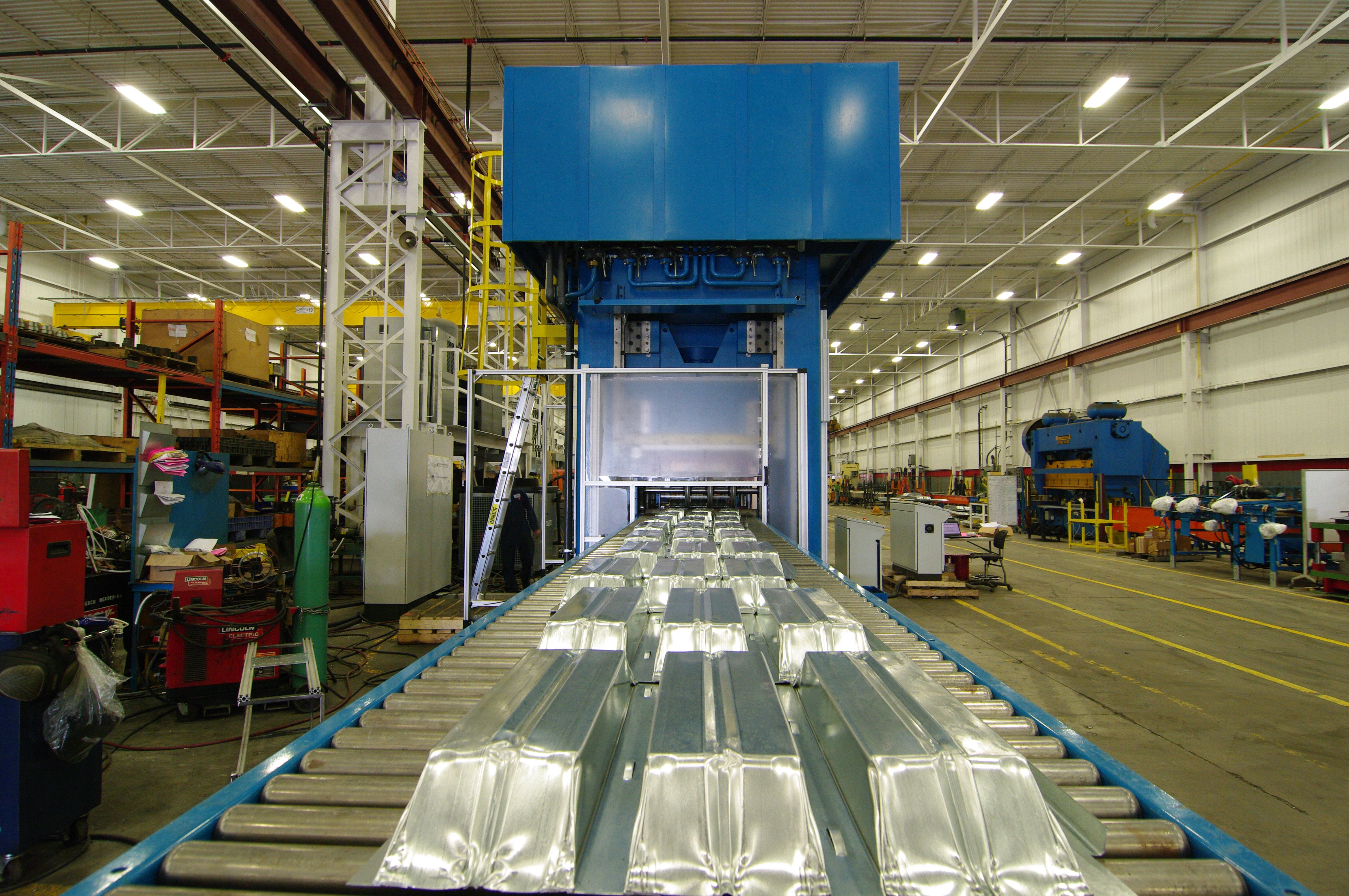

- Stationary hydraulic cut-off press, suitable for “stop-and-go” cut and form operation.

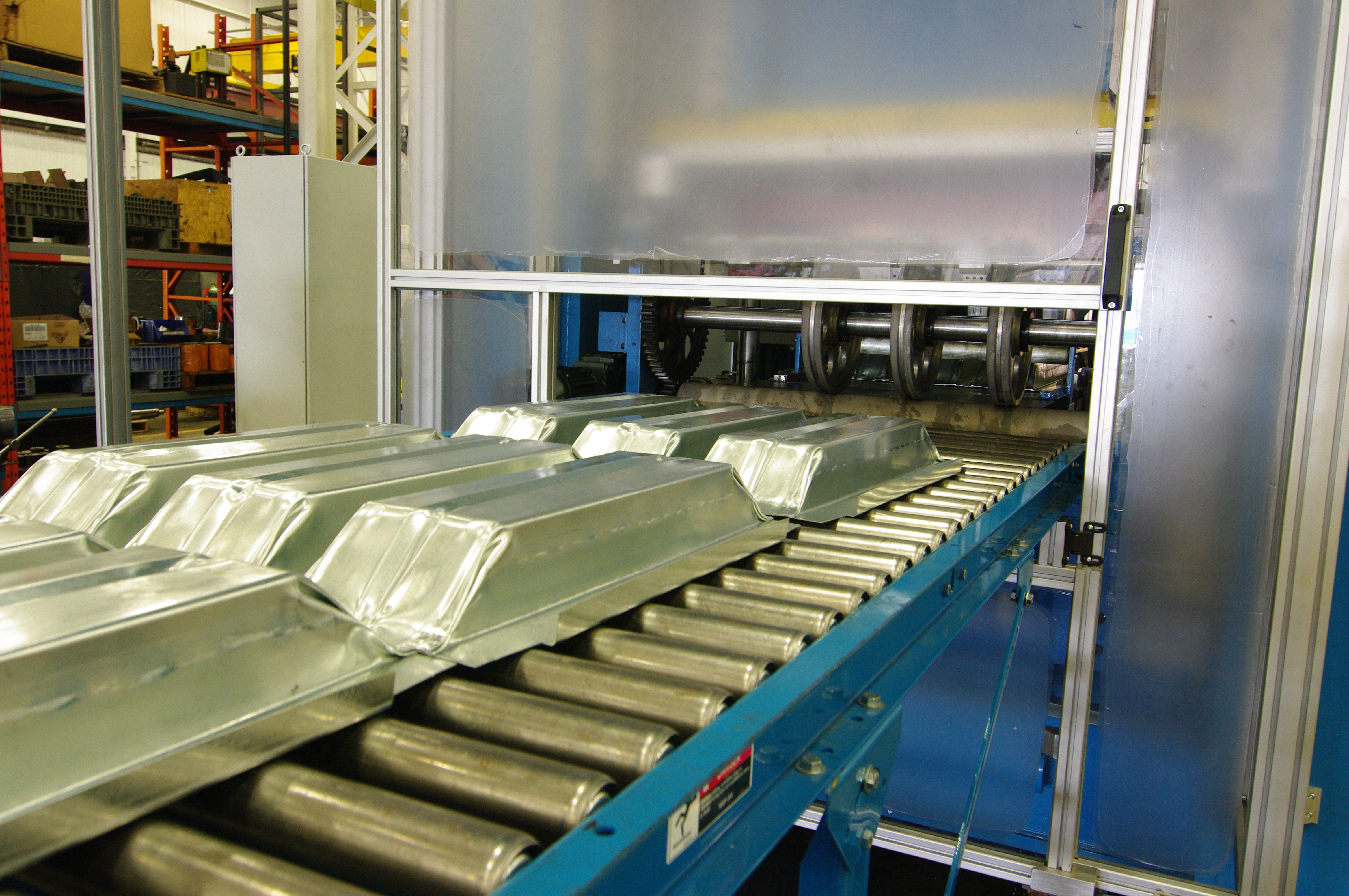

- 20-foot non-powered run-out roller exit conveyor pushes completed parts out.
A short video of this machine is available on YouTube: https://www.youtube.com/watch?v=KvQg1S_IPgE&feature=youtu.be
Samco Machinery provides customers leading edge designs and cost-effective solutions to satisfy any metal roll forming project need. Maintaining ISO 9001 certification, Samco manufactures roll forming machines, decoilers, roll form dies and presses servicing a multitude of customers worldwide in varied industries. Visit www.samco-machinery.com or contact sales@samco-machinery.com for more information.
